Drawing: |
|
 |
Earlier published in: |
. |
IEC 60617-12 (ed.3.0) 12-42-12 |
Description (temporary field): |
EN |

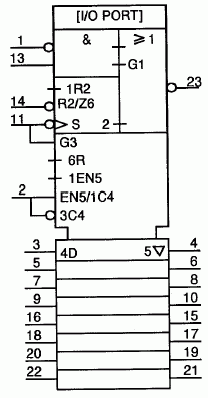

Input/output port, 8-bit
(e.g. 8212) |
|
FR |
Jonction à 8 étages
(modèle d'antériorité : 8212) |
Name: |
EN |
Input/output port, 8-bit |
|
FR |
Jonction à 8 étages |
Alternative names: |
EN |
|
|
FR |
|
Keywords: |
EN |
binary logic circuits; bistable circuits |
|
FR |
bascules, circuits logiques binaires |
Form: |
EN |
|
|
FR |
|
Alternative forms: |
|
|
Applied in: |
|
|
Applies: |
|
S01463, S01464, S01466, S01472, S01475, S01479, S01498, S01504, S01554, S01561, S01562, S01566, S01567 |
Application notes: |
|
A00269, A00304 |
Source references: |
|
|
Published in: |
|
|
Entered on: |
|
2004-04-26 |
Evaluated on: |
|
2004-04-26 |
Released on: |
|
2004-09-02 |
Rejected on: |
|
|
Obsolete from: |
|
|
Proposed by: |
|
TC3 |
Replaces: |
|
|
Replaced by: |
|
|
Shape class: |
|
Characters, Rectangles |
Function class: |
|
K Processing signals or information |
Application class: |
|
Circuit diagrams, Function diagrams |
Symbol restrictions: |
EN |
|
|
FR |
|
Remarks: |
EN |
E.g. 8212. |
|
FR |
Modèle d'antériorité : 8212. |
Change requests: |
|
C00119, C00163, C00189 |
