Drawing: |
|
 |
Earlier published in: |
. |
IEC 60617-12 (ed.3.0) 12-49-06 |
Description (temporary field): |
EN |

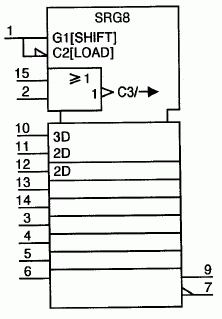

Shift register with parallel load, 8-bit
(e.g. SN 74165) |
|
FR |
Registre à décalage à chargement parallèle, à 8 étages
(modèle d’antériorité : SN 74165) |
Name: |
EN |
Shift register with parallel load, 8-bit |
|
FR |
Registre à décalage à chargement parallèle, à 8 étages |
Alternative names: |
EN |
|
|
FR |
|
Keywords: |
EN |
binary logic circuits; registers |
|
FR |
circuits logiques binaires, registres |
Form: |
EN |
|
|
FR |
|
Alternative forms: |
|
|
Applied in: |
|
|
Applies: |
|
S01464, S01474, S01558, S01567, S01810 |
Application notes: |
|
A00269 |
Source references: |
|
|
Published in: |
|
|
Entered on: |
|
2004-05-04 |
Evaluated on: |
|
2004-05-04 |
Released on: |
|
2004-09-03 |
Rejected on: |
|
|
Obsolete from: |
|
|
Proposed by: |
|
TC3 |
Replaces: |
|
|
Replaced by: |
|
|
Shape class: |
|
Characters, Rectangles |
Function class: |
|
K Processing signals or information |
Application class: |
|
Circuit diagrams, Function diagrams |
Symbol restrictions: |
EN |
|
|
FR |
|
Remarks: |
EN |
E.g. SN 74165. |
|
FR |
Modèle d’antériorité : SN 74165. |
Change requests: |
|
C00121, C00189 |
