IEC 60617-12 (ed.3.0) 12-56-03 |
Description (temporary field): |
EN |

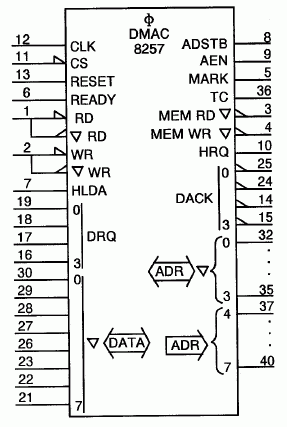

Programmable DMA controller
(e.g. INTEL 8257)
NOTE - In accordance with 54.2:
- ADR replaces A, and
- DATA replaces D. |
|
FR |
Contrôleur DMA programmable
(modèle d’antériorité : INTEL 8257)
NQTE - En accord avec 54.2 :
- ADR remplace A et
- DATA remplace D |
Name: |
EN |
Programmable DMA controller |
|
FR |
Contrôleur DMA programmable |
Alternative names: |
EN |
|
|
FR |
|
Keywords: |
EN |
binary logic circuits; complex function circuits; microprocessors |
|
FR |
circuits à foctions compexes, circuits logiques binaires, microprocesseurs |
Form: |
EN |
|
|
FR |
|
Alternative forms: |
|
|
Applied in: |
|
|
Applies: |
|
S01468, S01469, S01471, S01498, S01518, S01731, S01732, S01733 |
Application notes: |
|
A00269, A00317, A00356 |
Source references: |
|
|
Published in: |
|
|
Entered on: |
|
2004-05-05 |
Evaluated on: |
|
2004-05-05 |
Released on: |
|
2004-09-13 |
Rejected on: |
|
|
Obsolete from: |
|
|
Proposed by: |
|
TC3 |
Replaces: |
|
|
Replaced by: |
|
|
Shape class: |
|
Characters, Rectangles |
Function class: |
|
K Processing signals or information |
Application class: |
|
Circuit diagrams, Function diagrams |
Symbol restrictions: |
EN |
|
|
FR |
|
Remarks: |
EN |
E.g. INTEL 8257.
In accordance with 54.2 of A00317:
- ADR replaces A, and
- DATA replaces D.
|
|
FR |
Modèle d’antériorité : INTEL 8257.
En accord avec 54.2 du A00317 :
- ADR remplace A et
- DATA remplace D
|
Change requests: |
|
C00125, C00170, C00189 |
